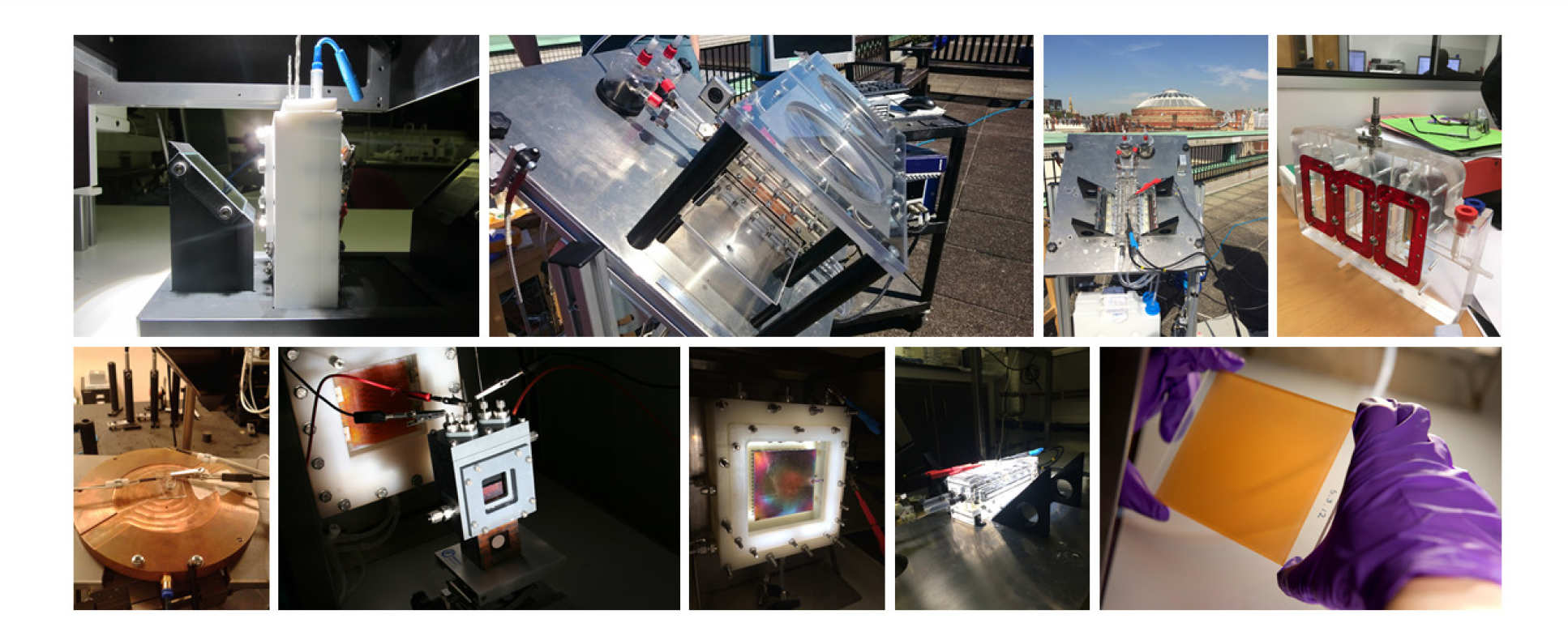

A selection of images of the materials and reactords we have been developing and testing
Our photoelectrochemical reactors and synthesized photoelectrode materials




Our goal is to design and build scalable prototype devices for spontaneous splitting of water into hydrogen and oxygen upon illumination by solar photons. This is one of the potential routes to sustainable, carbon-free energy.

The principal considerations in the design of such systems are materials and reactor structure; in our group we research both in parallel. We synthesize photoabsorbing materials, such as hematite, and determine all the essential paramaters that enable us to model their performance. Realiable micro-kinetic models can subsequently underpin the finite element models that enable us to design up-scaled photoelectrochemical reactors. We are investigating the following aspects of reactor design:

  • Optimisation of the mechanism for the illumination of one or more photoelectrodes (e.g. device tilt angle and/or use of optical components);
  • Minimisation of ohmic losses between the photoelectrodes, as well as current density distributions across the photoelectrode surfaces (see image below);
  • Efficient separation of the gaseous products of the water splitting process, minimising crossover;
  • Effective capture of hydrogen, enabling accurate quantification of the solar to hydrogen conversion efficiency;
  • Continuous operation under varying light intensities (what to do at night?).

Schematics showing the electric distributio  between three pairs of electrodes

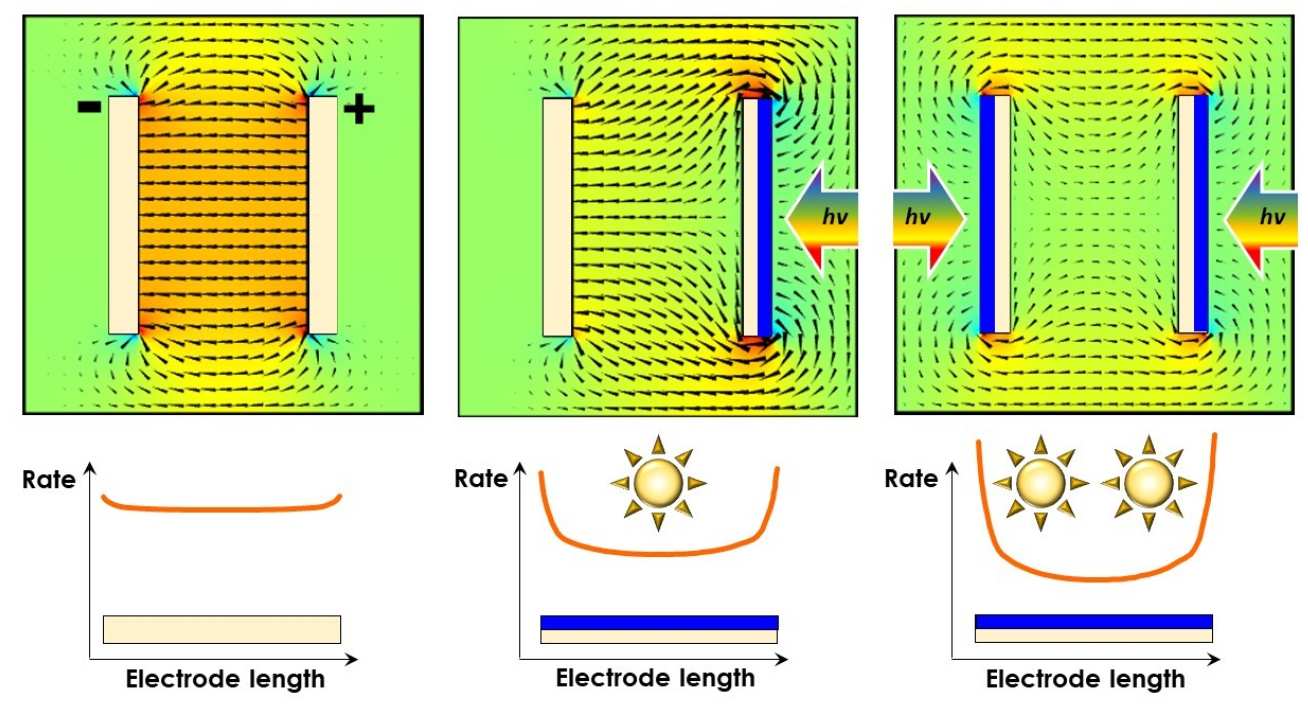

Electric field distribution between two electroactive electrode surfaces: if the surfaces are oriented away from each other for the purpose of maximising light harvesting, the inhomogeneous electric field distribution will limit reactor performance,

Problem in scale-up

Why do we use finite element models to help us design our devices? The illustration on the right shows, first, the ideal distribution of the electric field between a cathode and an anode of an electrochemical ractor - it is mostly uniform. This ensures a uniform ionic current between the electrodes, and hence a uniform reaction rate across the electrode surfaces. It is the ideal case scenario.

If the electroactive surface of one electrode is oriented away from the other electrode, the electric field becomes distorted (middle image). This effect becomes further exacerbated if both electroactive surfaces need to face away from each other (image on right) - this may be the case if both electrodes are photoactive and require irradiation by the full solar spectrum in order to function well.

These phenomena are extremely important in electrode/reactor scale-up and are examined closely in our group.


A slide from apresentation that shows a picture of ur reactor and the two electrode geometries that we tested in it

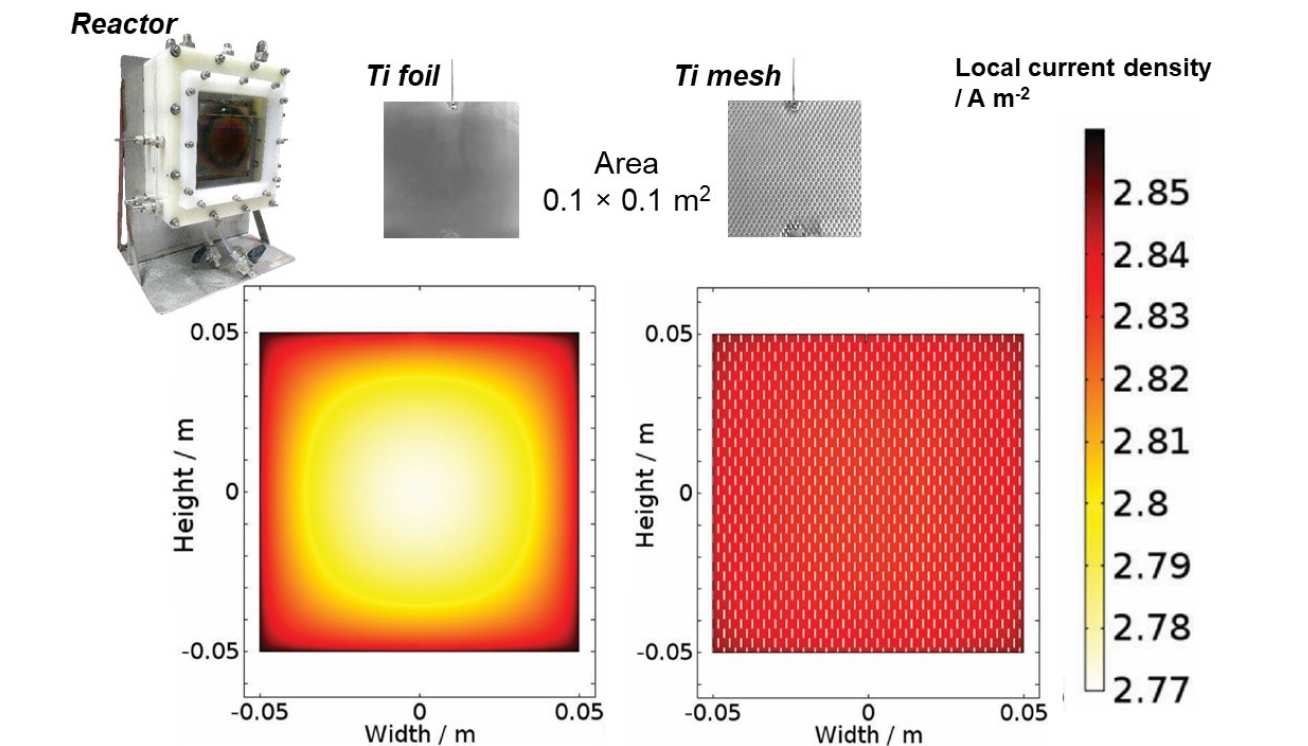

Secondary current density distribution at illuminated solid and perforated hematite surfaces in NaOH electrolyte as a function of spatial co-ordinates in the photo-electrochemical reactor; modelled using COMSOL Multiphysics.

Reaction and reactor modelling

The image on the right is an extract from a study that was a first-of-its-kind, successful attempt to investigate experimentally and to model the micro- and macro-kinetics of photoelectrochemical water splitting in up-scaled reactors. Based on rigorous characterisation, we developed a semi-empirical model of water splitting kinetics at a hematite | NaOH interface; this model was incorporated into a finite element model of one of our up-scaled reactors and used to simulate reactor performance as a function of experimental variables. Different photoelectrode geometries were investigated to illustrate the impact of macro-design choices on the overall current density, which is a direct measure of the H2 (and O2) production rate. The resultant, experimentally verified, model accounted for the overall energy balance of a photo-electrochemical system as well as material properties, electrochemical and photoelectrochemical thermodynamics and kinetics at solid | liquid interfaces, ionic transport and the primary and secondary (i.e. allowing for electrode kinetics) current distributions between geometrically complex electrodes.

For more images from our photoelectrochemical reactor development projects please visit the Gallery.


 Publications

Comparing electrolyser-powered-by-photovoltaics and photo-electrochemical systems for H2 production by splitting H2O with solar energy

Webinar: Hydrogen Production Using Solar Energy

First aired 20 January 2015 via the Knowledge Transfer Network.

This technical presentation compares hydrogen production by photovoltaic powered electrolyser systems and photoelectrochemical water splitting systems.

Please note: the recording begins at 0:28 and there are two interruptions to the recording at 01:53 - 02:52 and 39:21 - 45:09 minutes.
